VSR: Virtual studio 3-D reconstruction and relighting with real image-based relighting

1. The structure of each dataset is shown below.

[Dataset Name]/
├──transforms.json # Intrinsics, Extrinsics and Camera/IBL meta data
├──images/ # Images used for intrinsice and extrinsic pose estimation
| # Note that in Dataset 1 we use 161 additional views of the canonical scene
| # to predict better poses. The last 19 frames correspond to cam01-cam19.
│   ├──frame_00001.jpg
│   ├──frame_00002.jpg
│   ...
│   └──frame_XXXXX.jpg
├──splat/
│   └──splat.ply # The ply generated using the Splatfacto
└──meta/
    ├──backgrounds/ # IBl background textures
    |    ├── 001.png
    |    ├── 002.png
    |    ...
    |    └── YYY.png
    ├──images/ # IBl background textures
    |    ├──cam01
    |    |    ├──001.png
    |    |    ...
    |    |    └──YYY.png
    |    ...
    |    └──cam19
    |    |    ├──001.png
    |    |    ...
    |    |    └──YYY.png
    └──masks/ # IBl background textures
         ...



2. Estimating Camera Parameters and Training the Initial Scene

First prepare a folder containing you multi-view images. Then download and install nerfstudio. Use the follwoing command to generate poses and intrinsic information. This may fail for datasets with few cameras or limited color bandwidths. In these cases, we suggest capturing additional views to improve pose estimates.
ns-process-data images --data {DATA_PATH} --output-dir {PROCESSED_DATA_DIR}
Afterwards, a Splatfacto model is trained using the following command.
ns-train splatfacto --data data/nerfstudio/poster --load-dir {outputs/.../nerfstudio_models}
After training, the following commands are used to extract the camera poses and initial splat.

ns-export cameras --load-config {output/.../config.yml} --output-dir exports/
ns-export gaussian-splat --load-config {output/.../config.yml} --output-dir exports/


3. Mask Synthesis

In our case, there are only 19 views for which require masks so masks were drawn by hand at took around 1-minute per mask. There are however options to use automated segmentation, such as with SAM2 and SAM3. Though, we should note that there exist abmiguities regarding mask synthesis for transparent objects. In these cases we choose to include the entire glass object within our scene mask, as we intend to model the glass objects as part of the 3D GS scene.

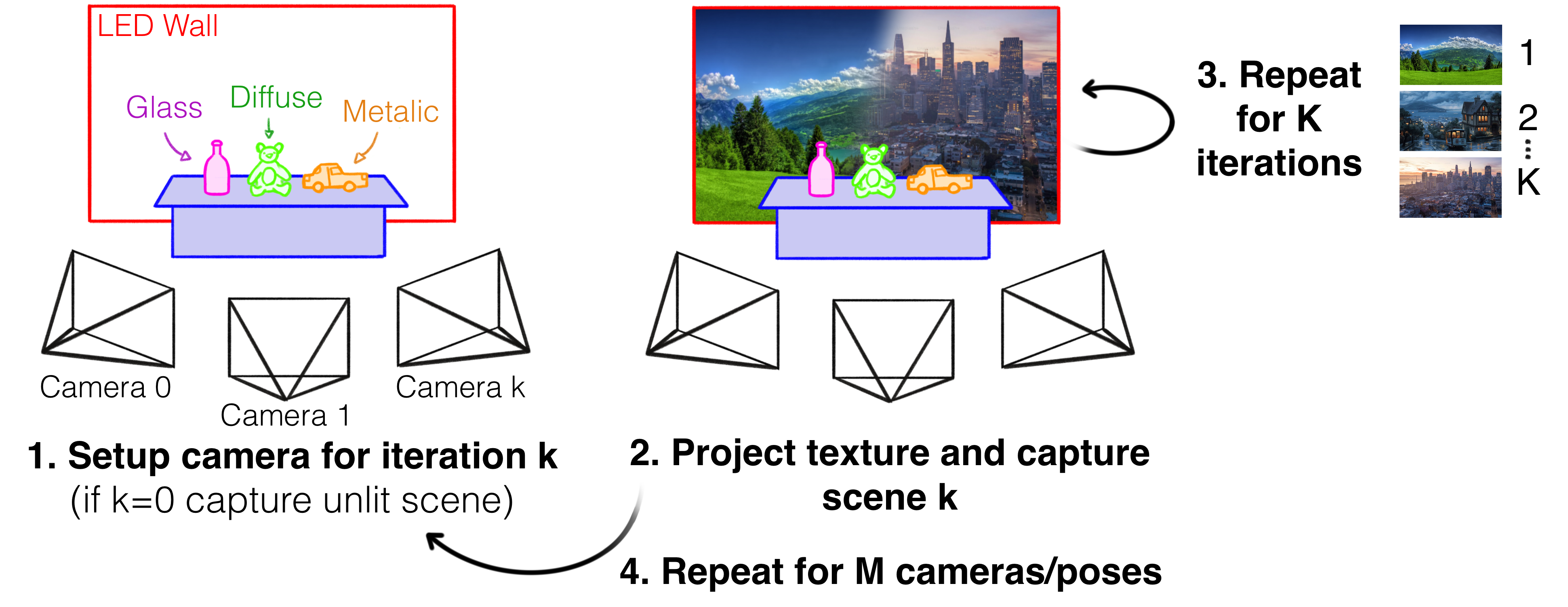

In the paper we rely on the datacapture methodology presented below to produce our three datasets under varying illumination. We only used a single camera for capturing scenes which takes considerably longer to accomplish. To support others in similar situations we will present tips and tricks below.

1. Establishing Dimensionality and Selecting Poses for Capture

On a scale of 2.5D to 3D, how 3D do you want you data? Capturing VS content limits data to proscenium views, so full 3D is not possible unless you are able to insert cameras into the LED wall. However, a large spread of cameras around the 2.5D scene will enable you to infer a greater range of novel views. Hence, the distribution of cameras directly affects the type of shots that can be captured. However, if you are running on a tight budget and have few cameras, as in our case, a wide distribution will results in worse reconstruction results so will negatively impact the quality of the final show. Clearly, related works on sparse-view reconstruction becomes relevant, though we leave this for future work to investigate optimizing reconstruction quality under sparse-view conditions ; as discussed in the Appendix.
In our case, with 18 training views, the radial spread of cameras for each datase is under 135Deg. We find that the geometric reconstruction quality for Dataset 1 and 2 is decent while for Dataset 3 shows various view-dependent geometry artifacts. The reason Dataset 3 fails to avoid over-fitting artifacts is due to scale of the important foreground objects, w.r.t the remainder of the scene. In Dataset 1 and 2, the coverage of the tables that the objects sit onto is rougly propotional to the volume of the target objects. Whereas, in Dataset 3 the coverage of the floor is significantly grater than that of the objects, therefore much less resources are attributed to target objects during training (under our loss scheme). This highlights a potential need for future work to establish a means of attributing larger gradients to areas of higher importance, as simply using the panoptic loss function (as we have done) is not sufficient.
Therefore, when designing data capture you will need to consider the radial spread w.r.t the number of cameras you have as well as the pixel coverage of the target objects in comparison to the remainder of the 3-D scene. You however, do not need to consider the pixel coverage of the LED wall/RIC-IBL source as this is masked out during training.

2. Selecting Textures based on Capture Limitations

Following the conclusions reached in the paper regarding RIC-IBL texture diversity for improving VSR, ideally users would select a large set of high frequency backgrounds to illuminate the scene during capture. However, this is not always feasible, especially when dealing with dynamic content (in future applications). Therefore, the optimal approach uses a sparse set of RIC-IBL textures to illuminate the scene for training (when K-> 1), where the textures used are locally unique and high in frequency density. However, this does not actually have to be the case. For example, if you indend on capturing a specific background composition (e.g. a low laying mountainous landscape), but have not yet decided what it will look like, it may be more effective and less probelamtic to simply capture the 3D scene under illumination conditions (i.e. RIC-IBL textures) that align with the expected background content.

3. Potential Options for Dynamic Scene Capture

The main limitation with capturing dynamic scene under varying illumination is that changing the RIC-IBL background throughout a performance will distract the actor and potentiall lead to worse performances. Hence, there are various approaches to capture and reconstruction that cmay preserve actor immersion.
First, the use of dynamic/video backgrounds naturally provides texture diversity without significantly changing the background content. In this case, the degree of frame differences is tied to the diversity of the texture, as not all dynamic changes may be significant enough to support the amount of texture diversity our method requires for VSR. In relation to the conclusions reached in the paper, future work could invesigate the perceptual challenge of designing dynamic backgrounds that preserve actor immersion while enahncing reconstruction quality.
Second, the paper demonstrates that VSR still produces acceptable results using the K=1 capture condition. This requires capturing the scene with (1) no RIC-IBL illumination and (2) with RIC-IBL illuminations. In this case, we note that the VSR pipeline was initially designed to support downstream dynamic applications - the design of the canonical representation is no coincidence. Most current dynamic GS methods operate using deformation fields that model residual changes w.r.t a canonical representations. In many cases, the canonical representation models a specific point in time t=T seconds. This could be taken advantage of by capturing a canonical (unlit) representation e.g. at t=0s. The LED background could then be switched on for the remainder of the shot t>0s, to satisfy the K=1 VSR condition. In principle the canon event could even be captured some time before t=0s, which would allow for a short pause in acting prior to the illuminated performance while the LED wall is switched on (we experience a 10-20s delay with Partner-A's VS wall). Practical equivalents already exist for this type of capture policy, whereby numerous studios already propose generating 3D assets of human actors prior to filming, then using the filmed content to rig the human asset.

1. Static scenes with single camera

For tight budgets, mutli-view cameras may not be feasible. Though with static scenes this can be easily sinulated with the following. First, prepare a video/frame squence of the background textures, where every 10 frames the background changes, and the video plays at 30FPS. When you capture the scene play the video and film the scene from a fixed viewing angle using 30FPS camera settings. Repeat this for all the fixed views you want. During post processing, you can then use a simple bash or python script to select every 10 frames, with an offset of 5 frames to prevent selecting frames where the background is refreshing. We did this for all three datasets and were able to capture the 18 views in under 20 minutes.
Consequently, capturing videos instead of images requires a understanding the ISO and rolling shutter settings. As the background content is ultimately replaced, we do not need to consider the in-camera exposure level of the background LED wall. This means that when selecting the right ISO/shutter speed, we only need to consider the exposure levels originating from the foreground. Most cameras conveniently have the zebra functionality, where pixel regions with >95% exposure are overlayed with stripes in-camera. We recomend using this to select an ISO setting this is both visually appealing and allows for a high bandwidth of colors and illuminations in the foreground. Though, we note that as AOVs are synthesizable via our VSR pipeline, the visual look of the scene can dapated downstream in post production, so in principle we suggest simply focusing on high bandwidths to support reconstruction quality. For those not familiar with 3D reconstruction, increasing the exposure/color bandwidths allows for a greater range of colors to be learned during reconstruction. This makes modelling highly textured materials easier as the change in material textures is more apprent under higher bandwidths.

2. Static scenes with multiple cameras

This is relatively simple and the fastest appraoch. If you prepared a video of the background textures, as outlined above, you could use a clapboard to sync the captured videos and implement a bash or python script that automatically selects every 10th frame with a 5 frame offset (as previously discussed).
